Network Cable Tester with LCD for RJ45, RJ11, BNC, Metal Cable M363
Sale price
$29.90
Regular price $128.74
Skip to product information
【Main Function-Fault Distance】Measures cable length and display the distance to fault, graphical wire mapping, opens, shorts.
【PoE & PING】PoE: Identify PoE presence and detect how much voltage. PING: To test network performance, data packet, min & max time.
【AC Filter】Tone trace cable with complete AC Interference Rejection, available on common switch & PoE Switch, much stronger than other tracers on markets.
【Hub Blink】To locate network port by the flashing port light on a server/switch/hub/router port.
【AT278 Cable Tester Benefits】TF card included to export data to PC; Voltage detector: included in receiver (90-1000V); Rechargeable Lithium battery for more efficient work. Low voltge alarm function and automatic delay power on-off. Big LCD color screen 320*240 and lighting lamp in darkness.
Industrial & Scientific Test, Measure & Inspect Network & Cable Testers
Network Cable Tester with LCD for RJ45, RJ11, BNC, Metal Cable M363
Sale price
$29.90
Regular price $128.74
Shipping calculated at checkout.
【Main Function-Fault Distance】Measures cable length and display the distance to fault, graphical wire mapping, opens, shorts.
【PoE & PING】PoE: Identify PoE presence and detect how much voltage. PING: To test network performance, data packet, min & max time.
【AC Filter】Tone trace cable with complete AC Interference Rejection, available on common switch & PoE Switch, much stronger than other tracers on markets.
【Hub Blink】To locate network port by the flashing port light on a server/switch/hub/router port.

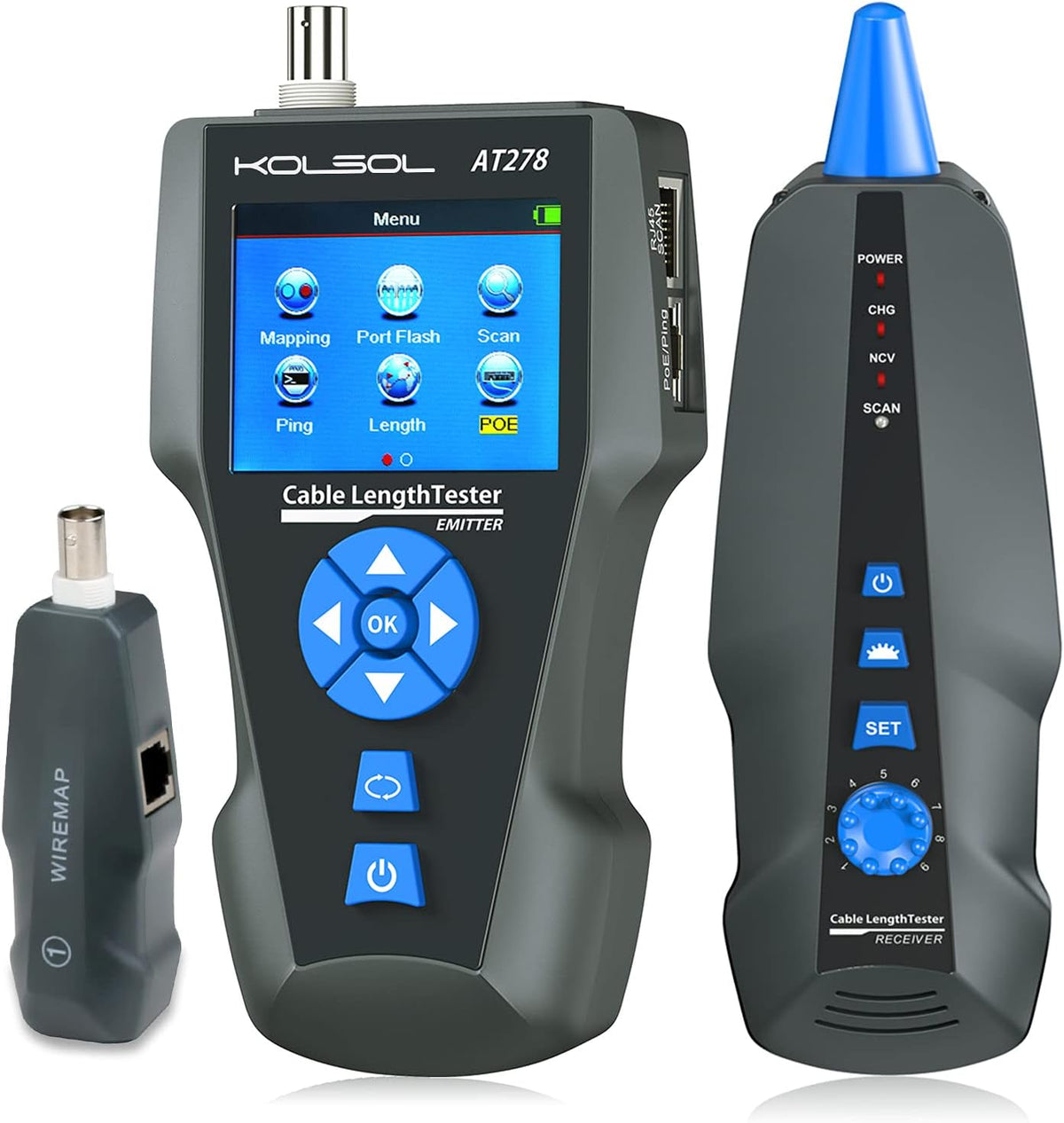

【AT278 Cable Tester Benefits】TF card included to export data to PC; Voltage detector: included in receiver (90-1000V); Rechargeable Lithium battery for more efficient work. Low voltge alarm function and automatic delay power on-off. Big LCD color screen 320*240 and lighting lamp in darkness.

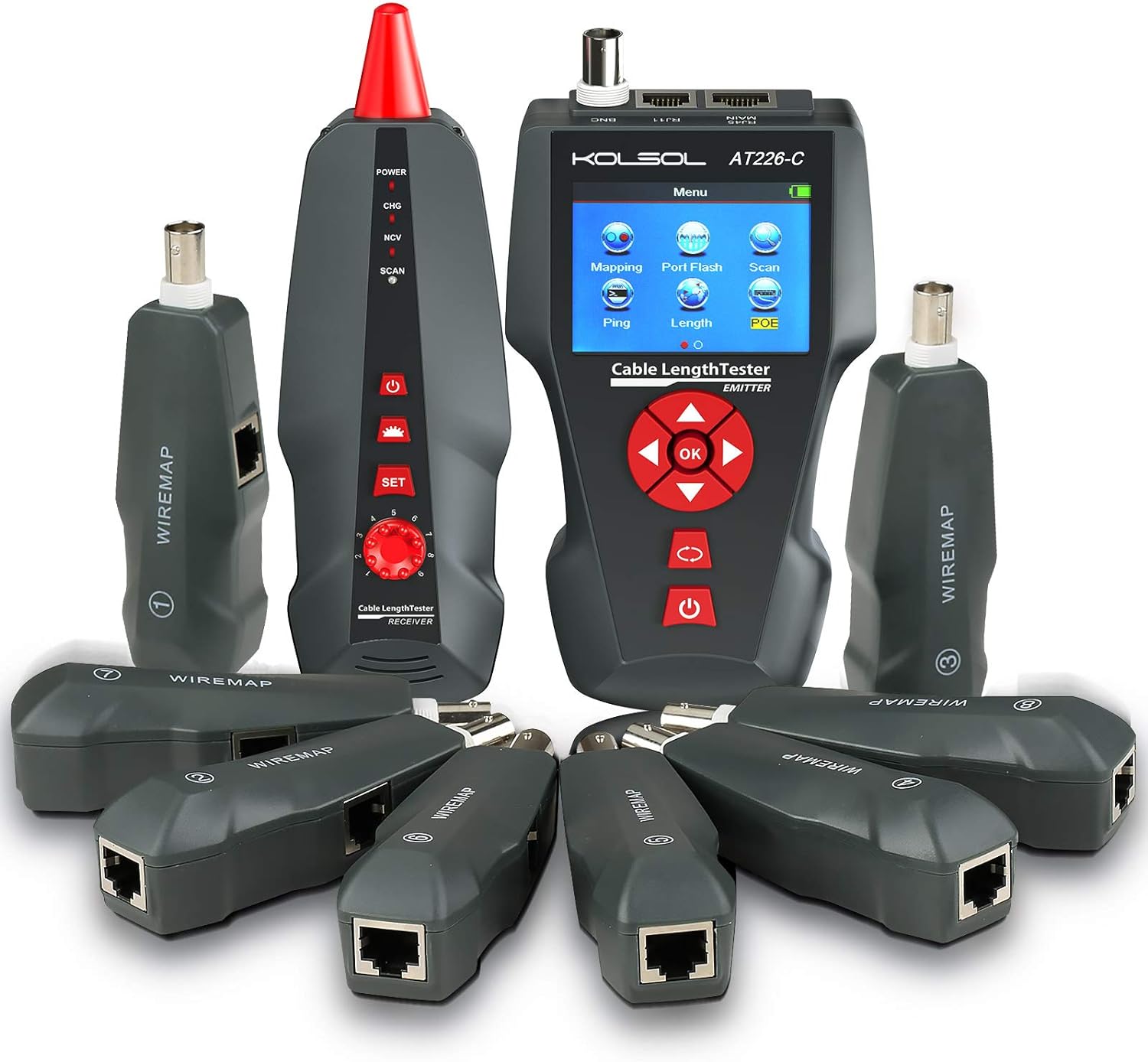

| AT278 | AT226-C | |
|---|---|---|
| Length Measurement - Working Theory | TDR | Capacity |
| Length Measurement - Cable Types | Cat5e,cat6,cat7,cat8,telephone cable, coax cable, power cable | Cat5e,cat6,telephone cable,coax cable |
| Length Measurement - Fault Distance | 1. Measure cable breakage & short distance. 2. Breaks or shorts in multi-pins can also be measured accurately | 1. Measure cable breakage, NOT short distance. 2. breakage distance cannot be measured accurately if broken pins > 2 |
| Length Measurement - Testing Modes | 1. Measure with main unit locally 2. measure with main & remote unit | Only measure with main unit locally |
| Length Measurement - Calibration | Use/unuse button to open or close the calibration data, no need to load the data again. Use: based on new calibrated data. Unuse: based on factory clibration data. | 9 sets of calibration data can be saved, users need to load the data after calibration |
| Wire Mapping - Testing Modes | Measure with main & remote unit | 1. Measure with main unit and remotes 2. measure with main unit locally (RJ45 MAIN + RJ45 SCAN) |
| Wire Mapping - Display | Wiremap with faulty pins and distance | Wiremap only with faulty pins, NOT fault distance |
| PING - Protocol Compatiblity | More compatible with different brands of routers | Not compatible with some brands of routers sometimes |
| Memory - Data Save & Export | 1. Data can be saved into TF card and export to PC. 2. Data can be deleted by function types. | 1.Data can be saved into TF card and export to PC. 2.Data cannot be deleted,can only be replaced after 160 sets. |
| Remote Qty | 1 set | 8 set |
