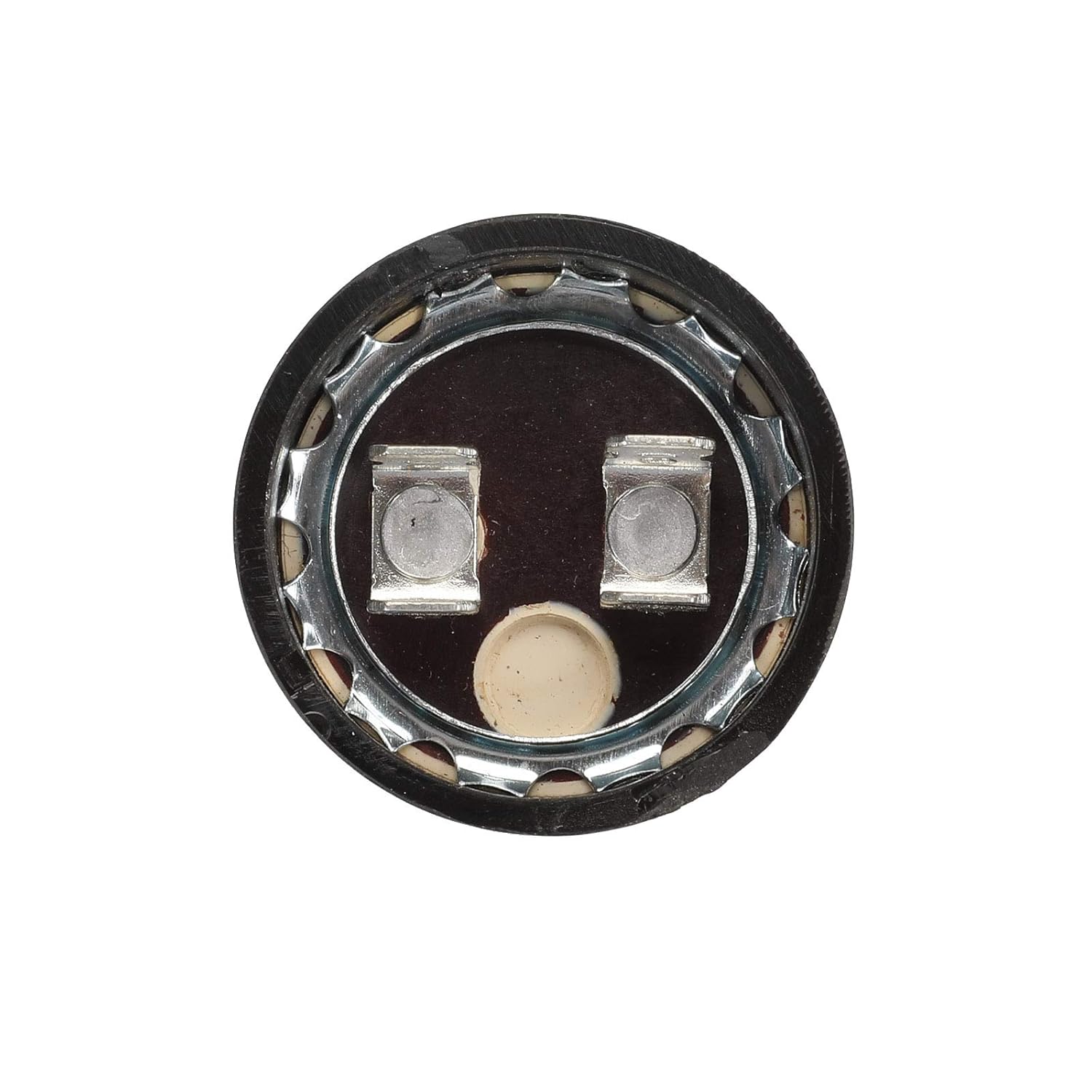

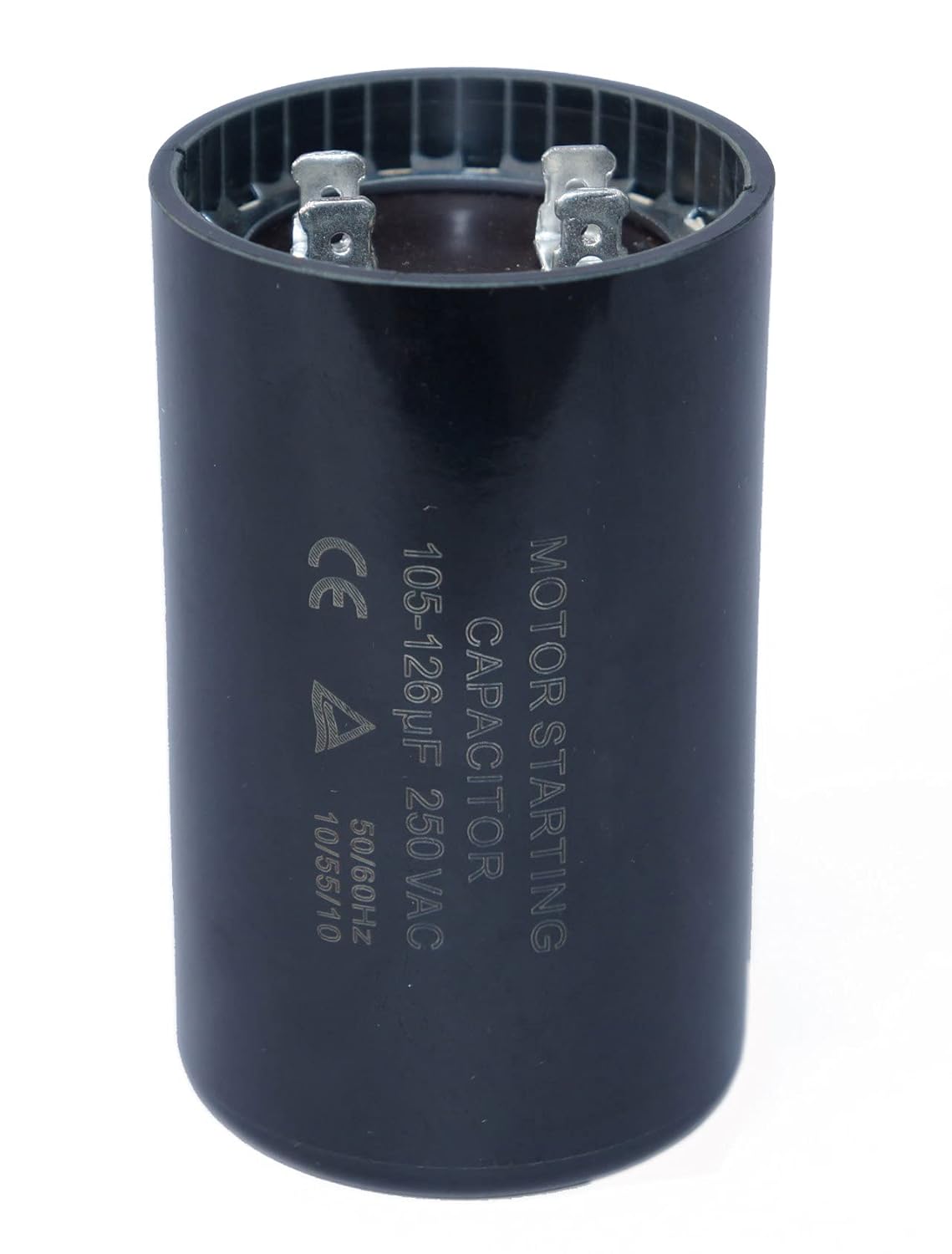

105-126 MFD Motor Start Capacitor J443
105-126 MFD Motor Start Capacitor J443
Model Name: Well Pump Start Capacitor, Volume: 105-126 MFD, Withstand Voltage: 220 - 250V AC 50/60 Hz, Shape: Round
Fits for Franklin 1.0, 1.5 and 2.0 HP Control Box 2823018110, 2801084915, 2823018310, 2823508110 and other similar water pump control boxes

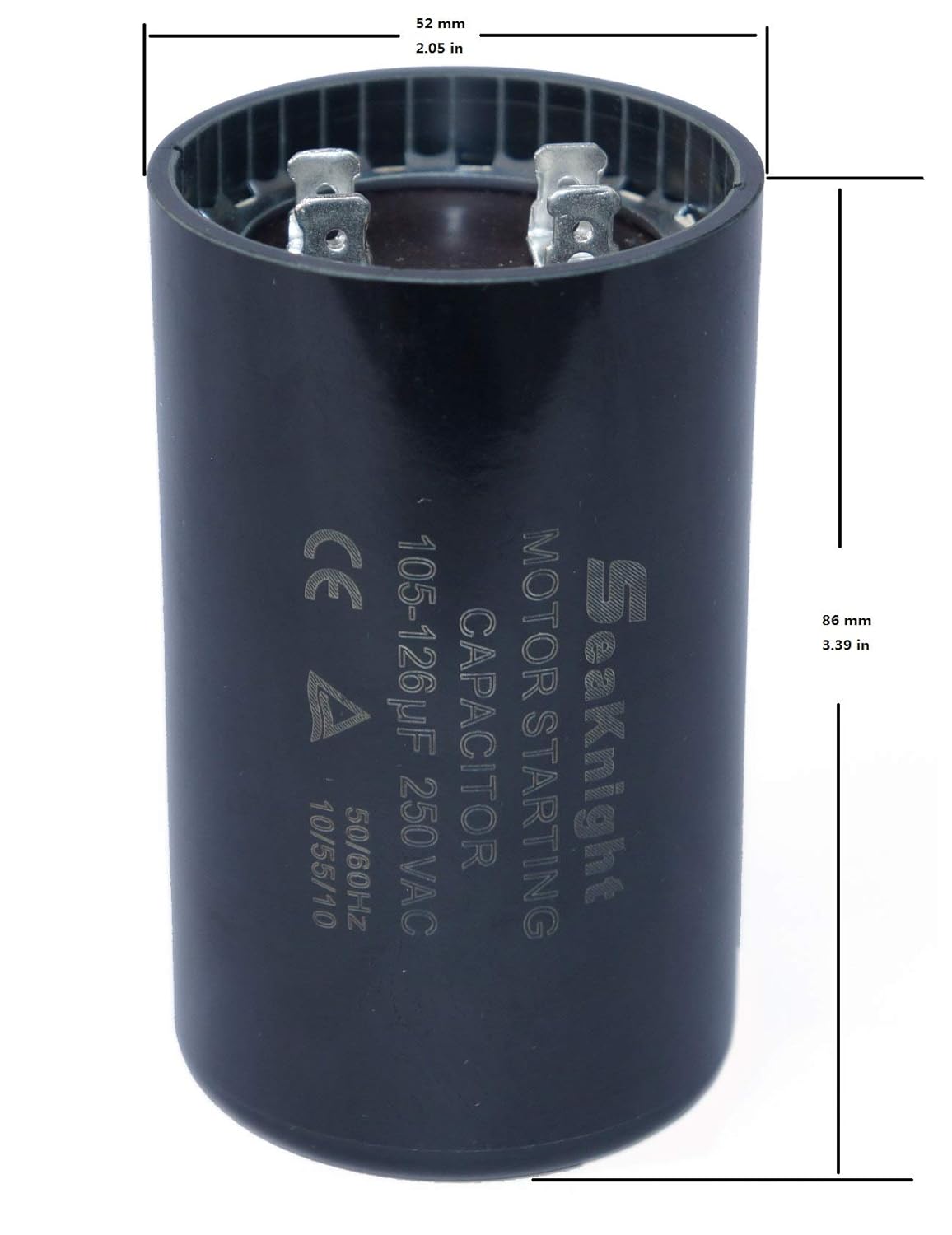

Overview Size 52*52*85mm(2 1/16' Diameter,3 3/8' Height), Directly replace for Franklin Part# 275464118
US style and professional capacitor for water control system
More big housing, better heat dissipation, more durable
Well Pump Start Capacitor
Volume: 105-126 mfd
Non-polarized types
Compatible for Franklin 1.0, 1.5 and 2.0 HP Control Box 2823018110, 2801084915, 2823018310, 2823508110 and other similar water pump control boxes
Net Weight: 2 oz
Common Remarks:
1.Not worry about this round capacitor installing, most are fixed with nylon ties or press-fixed with one bent steel pin

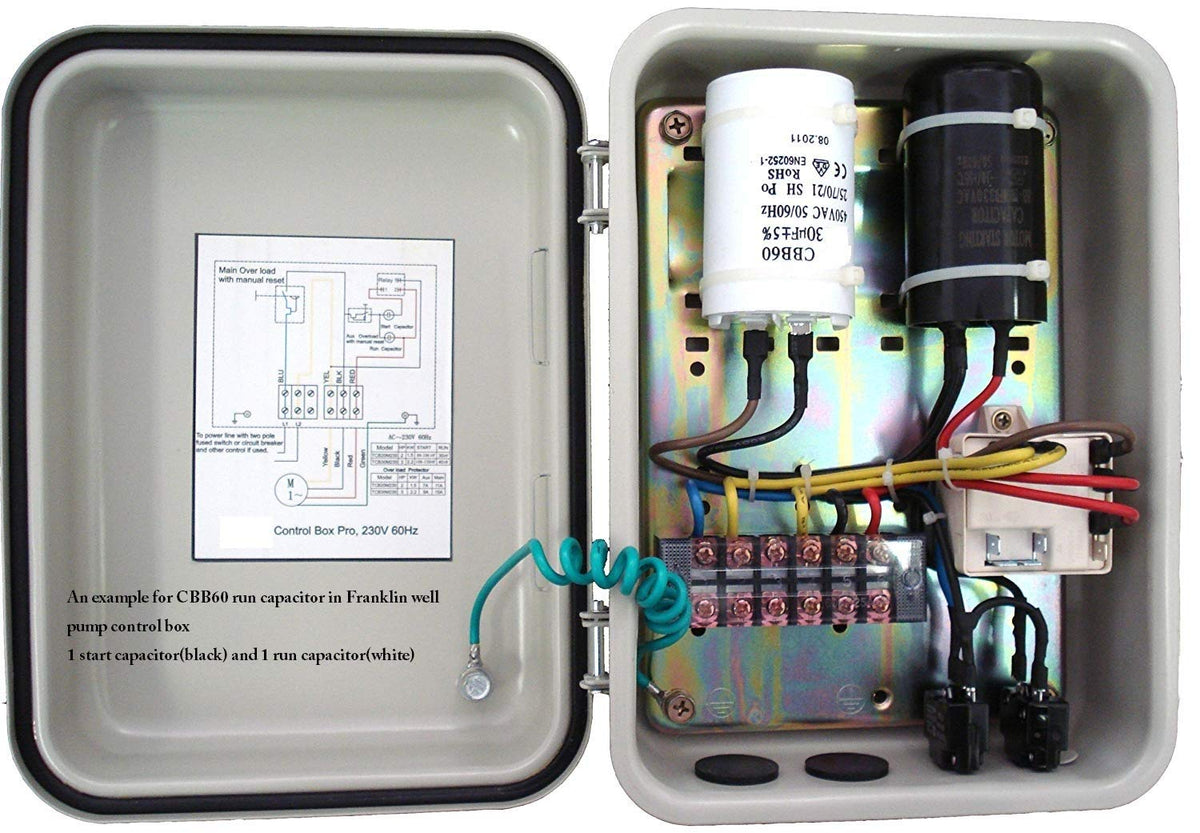

2.There are 1 start capacitor and 1 run capacitor together inside well pump control box
3.Normaly well pump run capacitor is CBB60(plastic shell) capacitor or CBB65(Aluminium Shell) capacitor,advise to use CBB65 capacitor for better heat dissipation and stability
4.The start capacitor lost function, it will lead to motor not start, obviously capacitor body become fat or inside-capacitor-material expand
